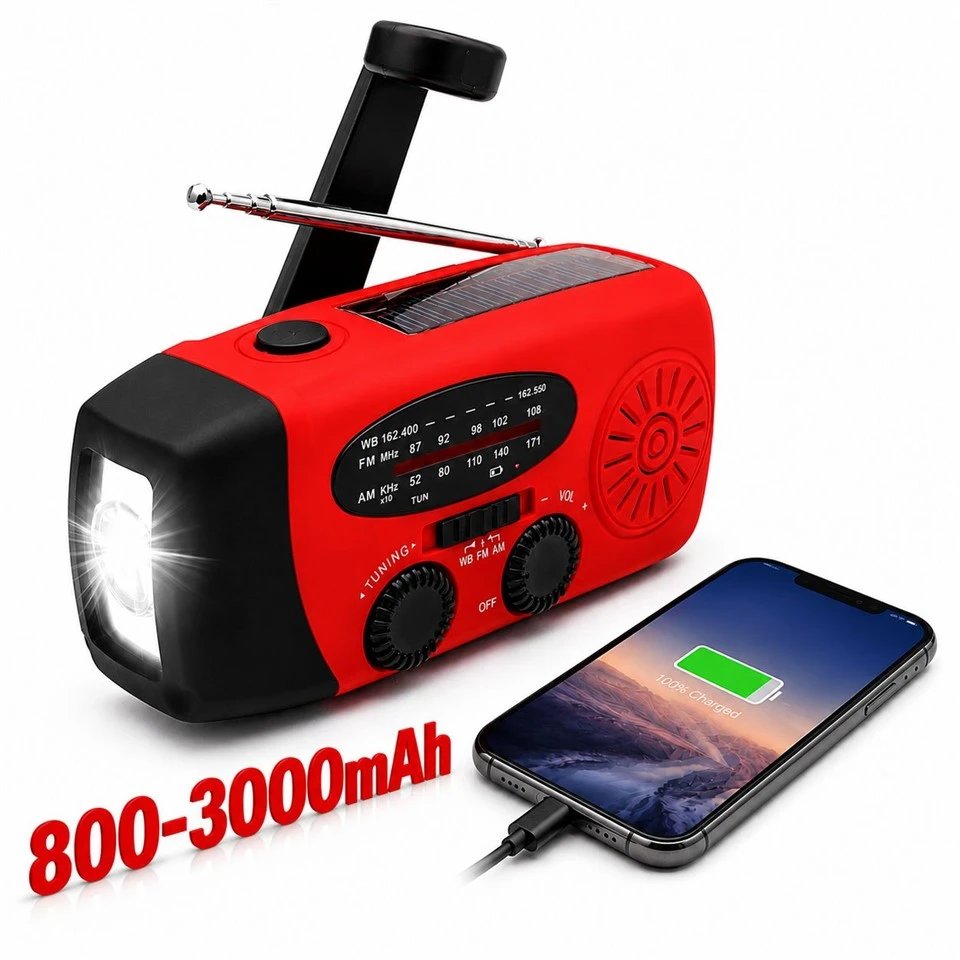

Product Introduction
AM/FM Radio Reception
The HT-238 supports AM and FM radio reception. The specified frequency ranges are 520–1710 kHz for AM and 88–108 MHz for FM, providing access to standard AM/FM broadcasts.
Solar and Dynamo Power Recharging
The radio supports two manual and renewable charging methods: solar charging through the built-in solar panel and hand-crank charging through the dynamo system. The specified solar panel output is 5V, while the dynamo output is DC 5V.
Built-in LED Flashlight
A built-in LED flashlight is integrated into the radio for emergency and outdoor lighting. The supplied specification lists 1 piece of LED light with an 8 mm diameter.
Rechargeable 3.7V Battery
The HT-238 uses one specified 18650 rechargeable battery rated at 3.7V and 2000mAh (available from 800 to 3000mAh). The rechargeable battery works with the solar and dynamo charging functions to provide portable power.
Mobile Charging and Micro USB Input
The product specification lists a 5V mobile charger jack and a 5V micro USB input jack. These connections support the radio's charging and mobile-device power functions as specified.
Portable Emergency Design
The compact radio measures 133 × 63 × 45 mm and weighs 223 g. The supplied images show a foldable hand crank, carrying-oriented body design, solar panel and integrated flashlight, supporting portable emergency use.
Product Specifications
|
Item |
Specification |
Item |
Specification |
|
Model |
HT-238 |
Product Type |
Solar Crank Emergency Radio |
|
Radio Bands |
AM / FM |
AM Range |
520–1710 kHz |
|
FM Range |
88–108 MHz |
Battery Range |
18650 rechargeable, 3.7V 800-3000mAh |
|
Solar Panel Output |
5V |
Dynamo Output |
DC 5V |
|
LED Flashlight |
1 PC LED light (φ8mm) |
Mobile Charger Jack |
5V |
|
Micro USB Input Jack |
5V |
Solar Panel |
Built-in |
|
Product Size |
133 × 63 × 45 mm |
Built-in Loudspeaker |
8Ω, 0.5W |
|
Power Output |
Around 350mW |
Product Weight |
223 g |
Application Scenarios
1. Emergency Kits & Household Backup Products
The HT-238 combines AM/FM reception, an LED flashlight and three charging routes in a compact body, making it a practical component for household preparedness assortments and backup-power product ranges. This makes it a practical solar crank emergency radio option for distributors and preparedness suppliers.
Suitable for: Emergency kit suppliers, home-preparedness brands, general merchandise importers and distributors.
2. Outdoor, Camping & Off-Grid Assortments
For camping, road trips and locations where mains power is not always available, the built-in solar panel and hand crank provide supplementary ways to recharge the internal battery. Its 223 g body also supports portable use.
The AM/FM receiver and integrated flashlight allow buyers to position the HT-238 as a compact multi-function item within outdoor and travel product lines.
Suitable for: Camping brands, outdoor wholesalers, travel-accessory distributors and sporting-goods retailers.
3. Private Label & Promotional Programs
The HT-238 can be supplied for OEM and private-label programs with buyer-specific branding, color, battery capacity, packaging, manuals and labeling discussed before production.
Suitable for: Importers, retail chains, promotional-product buyers, consumer-electronics brands and private-label programs.
What we can do for our customers?
1. From HT-238 Requirement To Production
For HT-238 projects, we begin by confirming the buyer's sales market, required quantity and the product configuration needed for that channel. The objective is to define the commercial version before sampling rather than making changes after mass production begins.
Customization can cover visible branding as well as practical order details such as housing color, rechargeable-battery capacity, retail box artwork, multilingual manuals, barcode labels and accessories.
The following workflow is used to move an HT-238 inquiry from requirement confirmation to shipment.
Define the HT-238 Configuration
Share the destination market, expected order quantity and the configuration you need. Product photos, a reference specification, packaging artwork or a short requirement list can be used as the starting point.
Confirm Feasibility & Commercial Details
Our team checks which requirements can be applied to the HT-238 and confirms the proposed configuration, customization scope, estimated pricing and production considerations. Initial project feedback is normally provided within 24 hours.
Build the Evaluation Sample
Once the configuration is agreed, an evaluation sample can normally be prepared in about 5 days; customized artwork or structural changes may require additional time.
Buyer Review & Final Confirmation
The buyer can evaluate reception, charging, lighting, appearance and packaging requirements before the production version is frozen. If changes are needed, they are reviewed before the bulk order proceeds.
Produce the Confirmed Version
After sample approval and order confirmation, the HT-238 enters scheduled production, including electronic assembly, product assembly, functional checks, aging procedures and final inspection.
A typical bulk-production cycle is around 30 days, subject to quantity, customization content and the factory schedule at the time of order.
Final Check, Packing & Dispatch
Completed units are checked against the confirmed order requirements before packing. Production or inspection photos and supporting documents can be supplied on request where applicable.
Standard export packing is available. OEM projects may also use customized color boxes, manuals, labels, barcodes and shipping marks according to the approved artwork.
Standard MOQ: 500 PCS. We recommend approving an HT-238 sample and all packaging details before releasing a customized order for mass production.
|
Customization Item |
Available Options |
|
Logo & Branding |
Custom logo printing, product label and brand identification |
|
Product Color |
Standard colors or customized colors based on project requirements |
|
Battery Capacity |
Different rechargeable battery capacity options available |
|
Radio Configuration |
Frequency configuration can be discussed according to target market requirements |
|
Product Functions |
Selected functions and product configuration can be evaluated for OEM/ODM projects |
|
Retail Packaging |
Custom color box, artwork and packaging design |
|
User Manual |
Customized manual and multiple language options |
|
Barcode & Label |
Custom barcode, SKU label, carton mark and shipping label |
|
Accessories |
Accessories can be configured according to order requirements |
Planning an HT-238 project? Send the destination market, quantity, branding requirements and preferred battery or packaging configuration so our team can review the workable options.
2. Export Packing & Lithium-Battery Shipping Support
Each HT-238 is protected with a bubble bag and packed in its individual box before the units are arranged in the export carton.
For bulk export orders, the packing method is intended to limit movement during warehouse handling, stacking and international transport while keeping the product, accessories and retail packaging protected.
Because the HT-238 uses a rechargeable lithium battery, buyers and freight forwarders may also require battery-related transport documentation before shipment.
Documents for Air and Sea Shipments
According to the confirmed battery configuration and shipping method, Hai Tong can coordinate the applicable supporting documents for air or sea transport.
- UN38.3 Test Documentation
- MSDS (Material Safety Data Sheet)
- Air Transport Report / Certification
- Sea Transport Report / Certification
Document availability is confirmed against the final product and battery specification. If a buyer or nominated forwarder requires additional paperwork, the requirement can be reviewed before shipment.
Project Experience Relevant to Emergency Radio Buyers
European Emergency-Radio Replenishment – 50,000 Units
A long-term European consumer-electronics customer requires environmental compliance across key materials and components, including the casing, PCB, solder and wiring. The project also specified batteries with temperature monitoring and protection functions for charging and discharging conditions.
When the 2025 power outages in Spain and nearby markets increased emergency-radio demand, the customer placed an additional 50,000-unit order. Hai Tong coordinated materials, production, testing and packing within a one-month window, with finished goods sent by air in batches of up to 10,000 units to shorten replenishment time.
Japanese Preparedness Project – Reliability-Focused Validation
For a Japanese household emergency-kit project, the buyer focused on whether stored radios would remain dependable when eventually needed. Evaluation therefore covered reception sensitivity, battery operation, hand-crank generation, structural integrity, controls, lighting and longer-term operating stability.
Before mass production, validation was carried out to the customer's requirements, including a 1.2 m drop test, 500 hand-crank durability cycles and environmental testing from -10°C to 50°C. Core reception, lighting and charging functions were also checked for batch consistency, followed by production and delivery of 50,000 units.
Long-Term Government Supply Program – More Than 800,000 Radios
Between 2011 and 2013, Hai Tong supplied the HT-777, HT-999 and HT-555 series for an Afghanistan government emergency-preparedness program.
The program ran across three years and involved several radio models rather than a single shipment. Cumulative deliveries exceeded 800,000 units, requiring repeated production planning and stable supply over an extended procurement cycle.
This experience is relevant to buyers evaluating Hai Tong for larger programs because it demonstrates multi-model production management, repeat-batch consistency and the ability to support sustained high-volume orders.
Why Work with Hai Tong for Emergency Radio Projects?
1. Radio Manufacturing & In-House Production Capability
Dongguan Haitong Electrical Appliance Manufacturing Co., Ltd. has more than 25 years of experience in emergency electronic products. Our 6,800-square-meter facility and team of approximately 110 employees support SMT, assembly, aging testing and shielding-test operations, while ongoing R&D adds 3–5 new products each year.
2. Export-Oriented Support for Overseas Buyers
Hai Tong supplies commercial customers across Asia, Europe and the Americas and supports OEM/ODM programs for brands, importers and distributors. The company's products and production system include ISO9001, CE, RoHS, FCC and design-patent documentation, and the factory has passed BSCI audits. Applicable certification and documentation should be confirmed for the selected model and order configuration.
FAQ
Q1: Can the HT-238 be customized for my brand?
A: Yes. OEM/ODM options can include logo printing, product color, rechargeable-battery capacity, retail packaging, manuals, barcode labels and accessories. The exact scope is confirmed according to your target market and order requirements.
Q2: What is the starting quantity for an HT-238 order?
A: The standard MOQ is 500 PCS. For customized projects, the workable quantity may depend on the requested color, packaging, battery configuration and other changes, so the final requirement should be confirmed before ordering.
Q3: How can I evaluate the HT-238 before mass production?
A: Buyers can order a sample for product evaluation before committing to a bulk order. Sample and express-shipping charges are normally paid by the buyer, and customized samples may require different cost or preparation time depending on the requested changes.
