Buyer Decision Card

Lighting is the primary visual selling point

The supplied specification lists an eight-LED front light using 0.15W LEDs and a separate four-LED side work light. Both lighting groups are stated at 1600 lm in the source specification. For sourcing and retail copy, buyers should confirm the final approved light-output claim before packaging is printed.

Radio coverage is simple but broader than AM/FM only

HT-3068 covers AM 530-1600 KHz, FM 88-108 MHz and SW 3.0-18.5 MHz. The analog tuning format keeps the user interface direct and gives the model an emergency-information role without adding a digital menu system.

Manual generation supports true off-grid positioning

The fold-out dynamo is specified at 4V/450mA. This gives buyers an independent power route when the rechargeable battery cannot be replenished from the DC input.

Alert and phone-power functions widen the use case

Two blinking red lights and an audible siren add a signaling function, while the DC 5V output can provide temporary power to a compatible mobile phone. These features make the product more than a conventional handheld flashlight.

Technical Reference

Item	Supplied HT-3068 Specification	Item	Supplied HT-3068 Specification
Radio bands	AM / FM / SW	Rechargeable battery	3.7V 1200mAh; options stated from 500-2000mAh
AM	530-1600 KHz	Dynamo output	4V / 450mA
FM	88-108 MHz	External input	DC 5V jack
SW	3.0-18.5 MHz	Phone output	DC 5V
Front light	8 × 0.15W LED; 1600 lm stated	Side work light	4 × 0.15W LED; 1600 lm stated
Warning	2 blinking red LEDs + siren	Color	High-visibility yellow / black
Dimensions	28 × 8.3 × 8.3 cm	Weight	Approx. 360 g
Included accessories	Wrist lanyard, charging cable	OEM/ODM	Available

How a Dynamo Flashlight Radio Should Be Positioned

This model is easier to differentiate when the buyer treats it as an illumination product with radio and emergency power functions, rather than as another rectangular emergency receiver. The torch body, two lighting zones and wrist lanyard give it a different merchandising story from table-style crank radios.

01/

Blackout and Household Emergency Kits

For preparedness shelves, the front beam covers directional lighting while the side lamp can serve close-range reading or work tasks. Radio reception, siren signaling and hand-crank generation add emergency functions without requiring a separate lantern and receiver in the same kit.

02/

Vehicle and Roadside Preparedness

The long torch shape is familiar in automotive emergency kits. Buyers can position the model around visibility, radio access and temporary phone power for roadside storage, provided the approved battery and output claims are matched to the final retail package.

03/

Camping, Field Work and Outdoor Distribution

The wrist lanyard, manual crank and physical controls suit channels where users may handle the product with gloves, in low light or away from a fixed outlet. Shortwave coverage also separates the radio from basic flashlight-only products.

04/

Private-Label Promotional Programs

A bright housing and large exterior surfaces give buyers room for brand treatment, model labeling and retail graphics. Logo, color, battery capacity, printed materials, packaging and accessories can be reviewed as part of the order configuration.

Feature Priority Matrix for Buyers

Buyer priority	HT-3068 feature to verify	Why it matters
Illumination	8-LED front beam + 4-LED side light	This is the most visible product difference and should match the approved claim and sample.
Information access	AM/FM/SW analog receiver	Provides radio utility without a digital control layer.
Power continuity	Rechargeable battery + 4V/450mA crank + DC input	Defines how the product is used during storage, outage and field conditions.
Signaling	Two red warning LEDs + siren	Adds an emergency-attraction function beyond the flashlight.
Temporary device support	DC 5V phone output	Useful for backup positioning, but retail claims should follow the approved configuration.
Portability	Torch body, approx. 360 g, wrist lanyard	Supports vehicle, camping and hand-carried use.

OEM Planning by Change Risk, Not by a Generic Six-Step Template

For HT-3068, the practical way to control a private-label order is to separate low-risk presentation changes from product decisions that can affect performance or compliance. That keeps the sample focused on the items that actually need approval.

GREEN - Presentation decisions that can usually be defined early

• Logo position, model label and buyer brand information.

• Retail-box artwork, manual language, barcode / SKU labels and carton marks.

• Approved accessory list such as wrist lanyard and charging cable.

AMBER - Configuration decisions that require sample confirmation

• Rechargeable-battery capacity within the supported 500-2000mAh range.

• Housing color if a project-specific color is requested instead of the standard yellow/black.

• Any change to the printed light-output, radio-range or phone-output claims.

RED - Items that should not be changed in artwork before engineering review

• Radio-frequency presentation for a destination market.

• Electrical or charging claims that differ from the supplied specification.

• Functional changes to the lighting, dynamo, alert or phone-output system.

Commercial Planning References

Planning point	Reference from supplied page	How to use it
MOQ	500 PCS	Use as the standard starting quantity; confirm if custom color or non-standard configuration changes the workable order.
Sample preparation	Normally about 5 days	Applies to a standard or lightly customized sample, subject to material and artwork readiness.
Mass production	Around 30 days	Final timing depends on quantity, customization, component availability and factory loading.
Payment	T/T; for orders ≥ USD 1,000: 30% deposit / 70% before shipment	Confirm the exact commercial terms on the quotation and order.

What the Buyer Should Freeze Before Production

• The approved battery capacity and all product-performance claims used on the box.

• The actual sample used as the visual and functional reference.

• Logo, color, labels, manual, barcode and accessory list.

• The inspection points that must be checked before packing.

• The transport documents required by the buyer or nominated forwarder for the final battery configuration.

Function-Cluster Acceptance Plan

A Dynamo Flashlight Radio should be approved by function cluster because its purchase value depends on more than appearance. The checklist below is written around the supplied HT-3068 architecture so a buyer can connect the evaluation sample to later batch inspection.

Cluster	Sample / batch checks	Commercial purpose
Lighting	Front 8-LED beam, side 4-LED work light, switches, visible assembly and the approved output claim	Confirms the product performs as the flashlight-led SKU the buyer selected.
Radio	AM, FM and SW reception, tuning response, antenna and speaker output	Confirms the delivered radio matches the agreed receiver configuration.
Power	Rechargeable battery, DC input, crank operation and DC 5V phone output	Verifies the alternative-power functions included in the approved version.
Alert	Two red warning LEDs and siren	Checks the dedicated signaling function before packing.
Mechanical	Crank hinge, wrist lanyard attachment, housing fit, controls and general surface condition	Targets parts handled repeatedly in normal use.
Order presentation	Logo, labels, manual, barcode, retail box, accessories and carton identification	Prevents the physical goods and buyer artwork from drifting apart.

Historical Reliability Reference - Japanese Preparedness Program

A Japanese household preparedness project placed emphasis on actual usability after long-term storage. The historical validation described in the supplied material covered reception sensitivity, battery performance, hand-crank generation, structural integrity, controls, lighting and long-term operating stability.

For that customer program, requested validation included a 1.2-meter drop test, 500 hand-crank durability cycles and environmental checks from -10°C to 50°C. Hai Tong subsequently completed production and delivery of 50,000 emergency radios. These were customer-specific project conditions and should not be presented as automatic standard tests for every current HT-3068 order.

Packing, Battery Documents and Export Readiness

Finished units can be protected in individual packing and then placed in outer export cartons. For OEM orders, the retail box, manual, SKU or barcode label and carton identification should be finalized before production release so the receiving warehouse gets the same SKU the buyer approved.

Rechargeable-battery shipment support

The supplied page states that lithium-battery transport documentation can be provided according to the confirmed battery and shipping arrangement. The exact paperwork should be checked against the battery used in the final order and the selected logistics route.

• UN38.3 test documentation

• MSDS (Material Safety Data Sheet)

• Air transport report / certification, where applicable

• Sea transport report / certification, where applicable

Why Torch-Format Products Need Different Packaging Review

Packing question	Why it deserves attention
Long housing protection	The 28 cm torch body should be immobilized so the ends and switches are not repeatedly loaded during carton movement.
Accessory control	The wrist lanyard and charging cable should be checked against the buyer-approved packing list.
Claim control	Lighting, battery and phone-output claims on the retail box should match the approved product configuration.
SKU identification	Barcode, model label and carton mark should point to the same commercial version.
Battery logistics	The final cell configuration should be known before transport documents are prepared.

Factory-Side Evidence for Procurement Files

The source material includes production / customer-review scenes showing product discussion and emergency-radio sample displays. These images are useful as supporting evidence, but a buyer should still tie any final order to the approved product specification, sample and inspection requirements.

Supplier Verification and Documentation Review

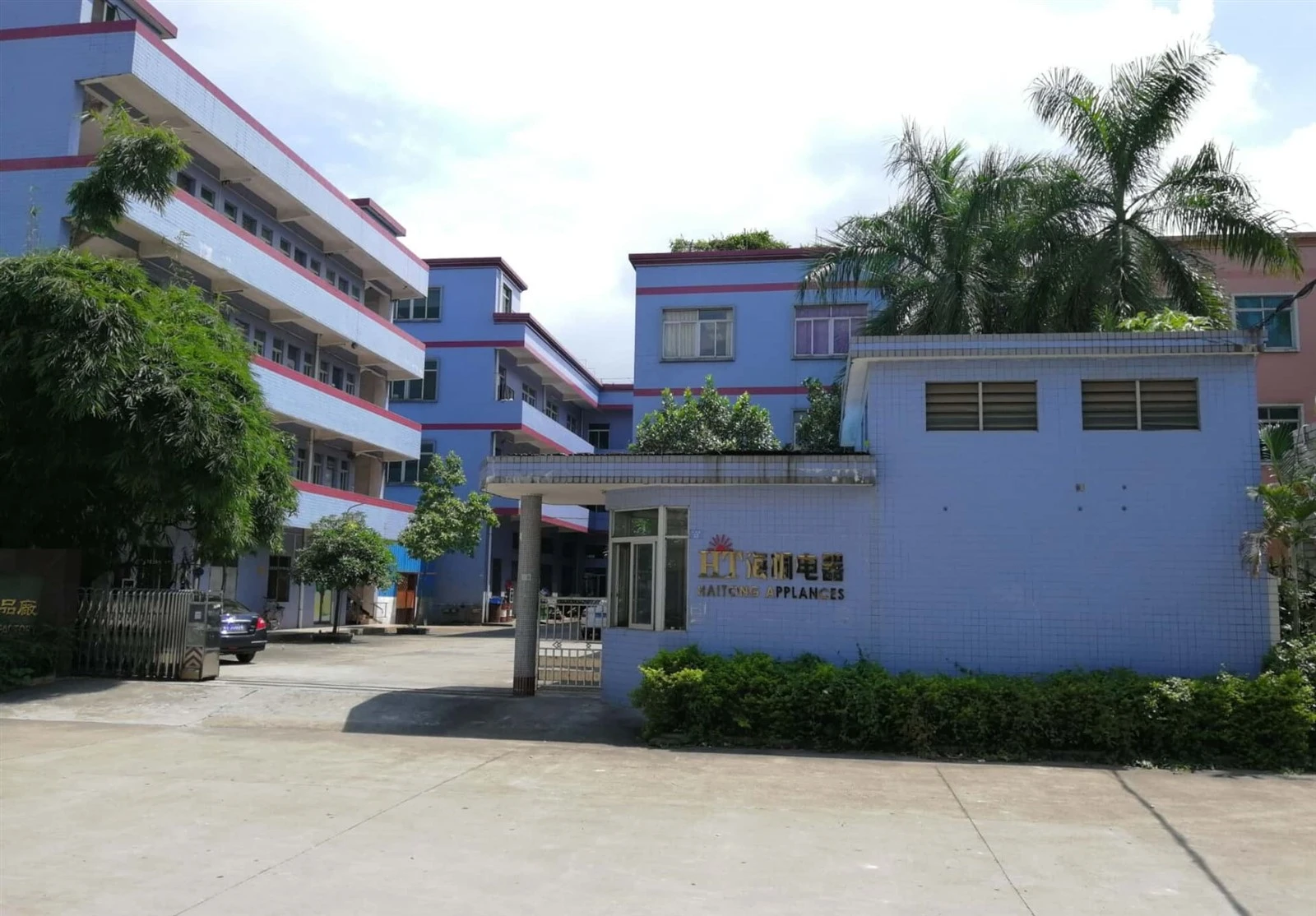

Hai Tong operates as a radio manufacturer in Dongguan. The supplied page describes production resources covering SMT, assembly, aging testing and shielding testing, together with OEM/ODM support for overseas brands, importers and distributors. It also shows company / product documentation such as CE, RoHS, FCC-related materials, design-patent information and factory-audit records. Applicability should be confirmed for the exact model and destination market rather than assumed from another product.

Buyer FAQ

Q1: Is HT-3068 Mainly A Radio Or Mainly A Flashlight?

Commercially it is strongest as a flashlight-led emergency product. The eight-LED front beam and four-LED side light are its most visible features, while AM/FM/SW reception, crank power, siren and phone output broaden the emergency use case.

Q2: Can The Rechargeable Battery Capacity Be Changed?

The supplied specification lists a 3.7V 1200mAh configuration and an available range from 500 to 2000mAh. The selected capacity should be confirmed during quotation and then checked again on the evaluation sample.

Q3: What Should Be Tested On A Pre-Production Sample?

At minimum, review both lighting zones, AM/FM/SW reception, crank operation, rechargeable-battery behavior, DC input, phone output, warning lights, siren, housing, labels and packaging. The approved sample should then be the batch reference.

Q4: What Is The Standard MOQ?

The supplied page lists a standard MOQ of 500 PCS. The workable MOQ for a special color or non-standard configuration should be confirmed before sampling.

Q5: Can I Evaluate A Dynamo Flashlight Radio Before A Bulk Order?

Yes. The supplied workflow allows sample evaluation before mass production. Sample charge, express freight and the preparation time for any customized version should be confirmed with the quotation.
